Logical Network Topology

Logical Network topology also called signal topology. Every LAN has a topology, or the way that the devices on a network are arranged and how they communicate with each other. The way that the workstations are connected to the network through the actual cables that transmit data -- the physical structure of the network -- is called the physical topology. The logical topology, in contrast, is the way that the signals act on the network media, or the way that the data passes through the network from one device to the next without regard to the physical interconnection of the devices.

Logical Network Diagram Software

Edraw Network Diagram is ideal for network engineers and network designers who need to draw logical network diagrams. Click here to free download Logical Network Diagram Software. Then you can use the build-in template to create and present your logical network diagrams in minutes.

Logical Network Diagram Symbols

It had defined some common used symbols to draw logical network diagrams. Just drag and drop pre-drawn shapes representing computers and network devices.

Logical Network Symbols

Logical Network Diagram - Network and Peripherals

Logical Network Diagram - Computers and Monitors

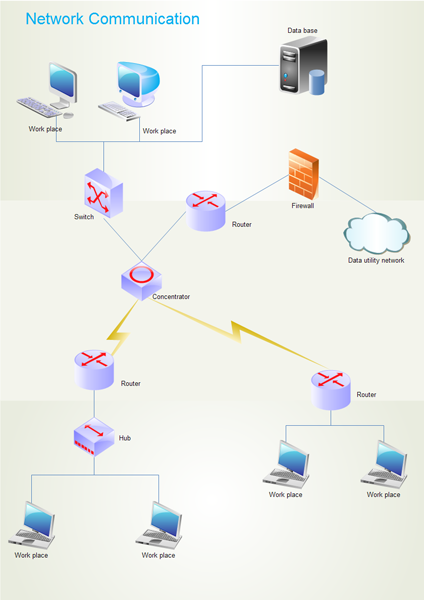

Examples of Logical Network Diagram

The logical network Diagram will be used to represent how you network connections are using the upper layer of the OSI, and will help to understand your IP addressing.

Logical topologies are bound to the network protocols that direct how the data moves across a network. The Ethernet protocol is a common logical bus topology protocol. LocalTalk is a common logical bus or star topology protocol. IBM's Token Ring is a common logical ring topology protocol.

A network's logical topology is not necessarily the same as its physical topology. For example, twisted pair Ethernet is a logical bus topology in a physical star topology layout. While IBM's Token Ring is a logical ring topology, it is physically set up in a star topology.
